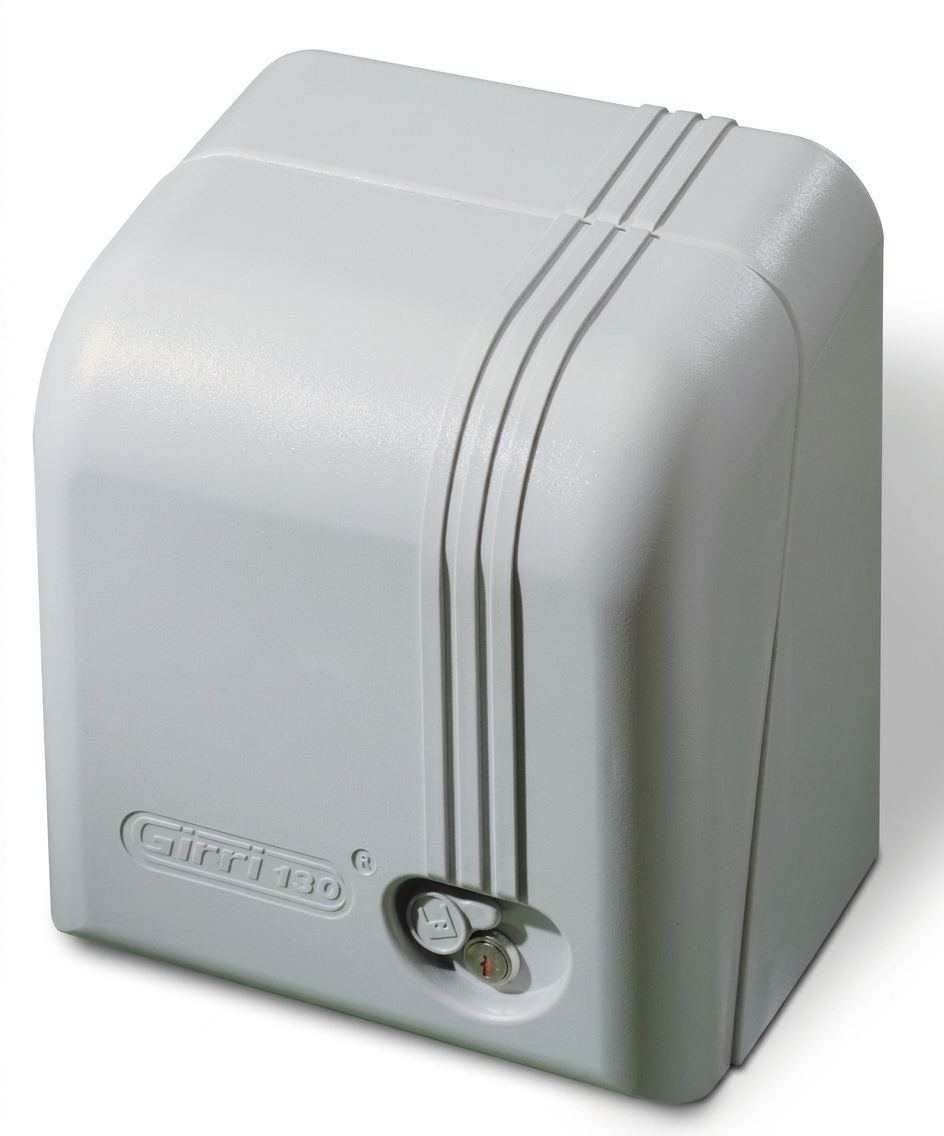

Electromechanical sliding gate operator designed for gates up to 400 kg, featuring a 0.25 kW (0.33 HP) motor, 230 V / 50 Hz power supply, and a travel speed of 10 m/min. The operator provides reliable performance with a rated torque of 28 Nm, suitable for regular residential and light-duty applications.
Features
• High Performance: 0.25 kW motor with 28 Nm rated torque.
• Reliable Operation: Designed for gates up to 400 kg.
• Fast Gate Movement: Travel speed of up to 10 m/min.
• Efficient Gear System: 1:30 gear ratio for smooth and reliable operation.
• Durable Construction: Class F insulation for enhanced motor protection.
• Weather Resistant: Operating temperature range from –25°C to +70°C.
• Protection Rating: IP53 for protection against dust and water spray.
• Intermittent Duty: S3 service with a duty cycle of 30 sec. opening / 30 sec. stop / 30 sec. closing.
• Operating Capacity: Up to 40 complete cycles per hour.
• Lubrication: Agip MU/EP1 grease lubrication system.
